Integrated flow temperature sensor-SN10C

PREV: Intelligent Impeller Flow Sensor-SN51D
NEXT: Intelligent Vortex Flow Sensor-SN53

Product introduction

Based on the thermal principle, the sealed probe contains two resistors, one of which is heated as a sensing resistor, and the other is unheated as a reference resistor. When the medium flows, the heat on the heated resistor is carried away, changing its resistance value. The difference between the two resistors is used as the basis for determining the flow rate. The SN10C also has a built-in PT100 probe or temperature switch. The PT100 resistance changes with the medium temperature, or the switch activates when the temperature reaches the set value. It has no moving parts, requires no maintenance, and is easy to install. One model is suitable for various pipe diameters, the switching point is continuously adjustable, it has extremely low pressure loss, a compact structure, and an LED display showing flow trend, switch status, and temperature signal. An optional panel-mounted control meter is available.

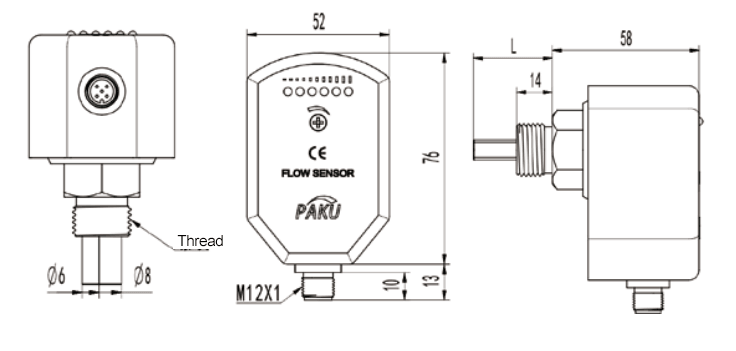

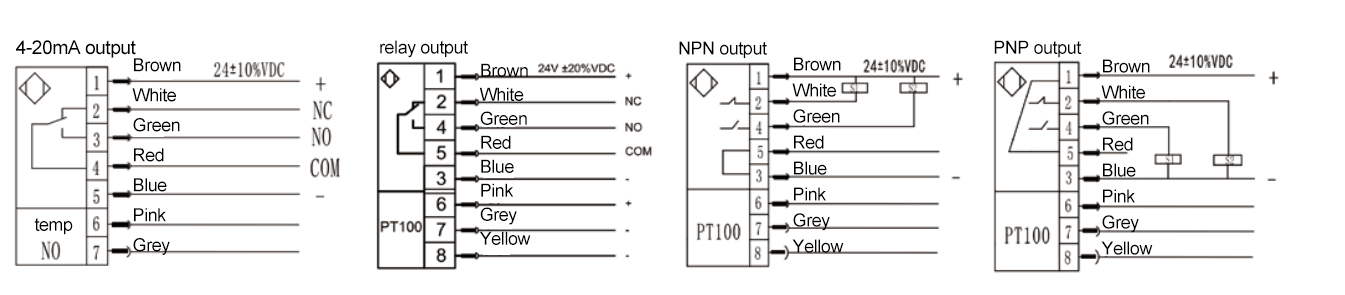

Product Applications Technical Parameters Wiring Diagram Dimension Drawing Installation Instructions LED functions and settings (switching type) Selection Table

Gas-liquid type, low flow rate alarm, and real-time monitoring of the measured medium temperature.

-Setting range:1...150cm/s (water)
3...300cm/s(oil).
20...2000cm/s(air)
-Signal output: PNP, NPN, relay normally open + normally closed (SPDT)
-Power supply: 24V 20% DC or 230V 15% AC
Turn-on current:Maximum 400mA(PNP or NPN type)
Maximum 1A@48V(Relay type)
-No load current:Max 80mA
-Flow rate indication: LED row (6pcs)
-Setting method: potentiometer setting
-Pressure resistance range: 100bar
-Temperature gradient: <4°C/S
-Response time: 1-13s, typical value 2s
-Initialisation time: approx. 8s
-Electrical protection: reverse phase, short circuit, overload protection
-Protection level: IP65
-Medium temperature: -20-80°C
-Ambient temperature: -20-80°C
-Storage temperature: -20-100°C
Wiring: M12 connector / directly attached to the 2-metre cable optional
-Material: Probe: stainless steel
Housing:PBT

SN10C-

G2H

Detailing

SN10C-

SN10C Series Integrated Flow Temperature Sensor

M1K

Interface thread M18*1.5 female (single rod option only)

G2H

Interface thread G1/2 external thread

G4H

Interface thread G1/4 male (single rod option only)

Customised threads, e.g. NPT1/2, option N12

DC24V±20% power supply

PNP output

NPN output

Relay outputs

Normally open + normally closed outputs

Probe material: 304 stainless steel

Probe material: 316L stainless steel

Plug-in (2 metre cable as standard)

direct line-out

Probe length Unit mm (including thread)

Customised probe length in mm (including threads)

PT100 resistance signal output (3-wire)

4-20mA output

Temperature normally open output, e.g. 50 degrees normally open, option: NO50

Temperature normally closed output e.g. 50 degrees normally closed, option: NC50

* Factory standard electrical accessories M12 connector type ZL08-PU02FG
* M18*1.5 female threaded rod length including thread 60mm mounting method, please pay attention to the optional mounting accessories.
* Customised threads are available, H is male thread and K is female thread.
* Electrical accessories and mounting accessories, please see the accessories page.
* The selection table is for parameter selection only, and the corresponding code of the parameter will be shipped from the factory.
